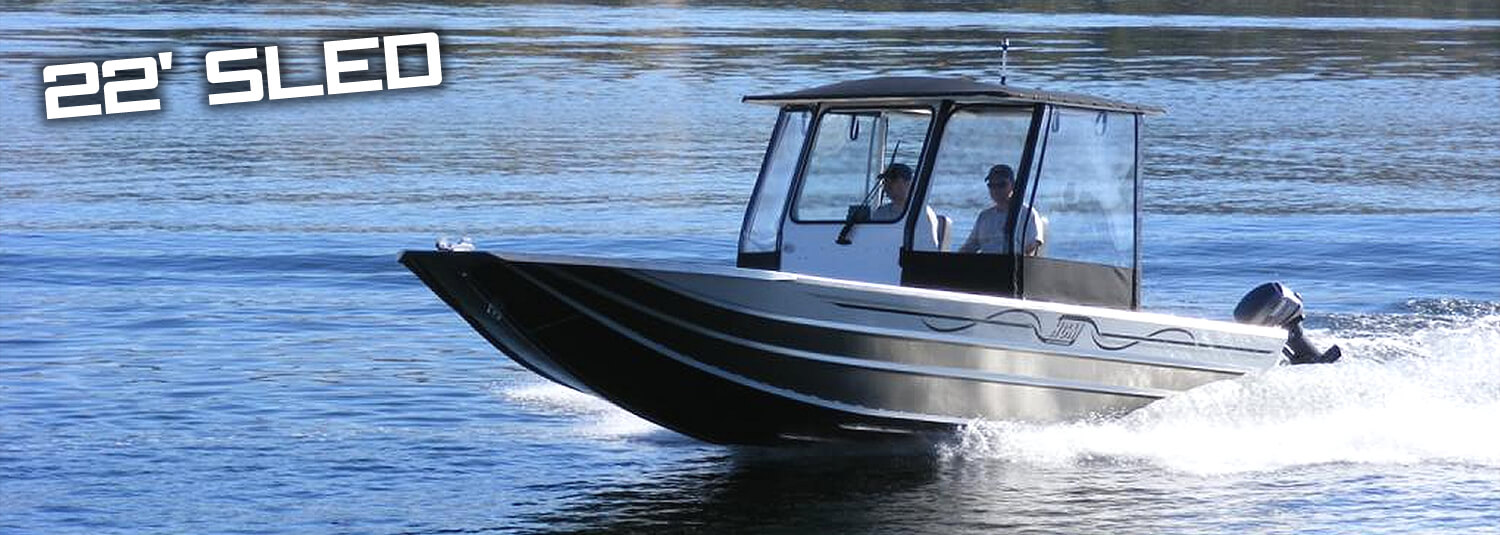

22′ SLED
HCM Sled is the versatile boat for an outdoors enthusiast. This boat tows well behind your average 3/4 ton pickup truck or large SUV. Hells Canyon Marine boats are designed for many uses! Including hunting, fishing, beach hopping, and running a shallow river with some whitewater between you and your destination. As many know, it can take a boat capable of accepting a challenge to make it to your favorite fishing spot. With the HCM Sled, you’ll have plenty of room for all the gear that is needed for hunting, fishing, and camping.
Pricing will be sent with your custom build sheet after your form is submitted.
Specifications
- Deadrise
- Beam
- Bottom
- L.O.A.
- Sides
- Transom
- Fuel Cap.
- Bottom Support
- 11 degrees
- 102″
- 78″
- 22′
- .125″
- .190″
- TBD
- 5 hull stiffeners
Standard Equipment
POWERPLANT
- Kodiak 6.2L DIC
- Mufflers
- Hamilton 212 Jet Pump with Close Coupler and 3/4″ Billet Intake
- Sound Deadening Insulation added to Engine Compartment
HULL
- Self Bailing Rear Deck with Removable Storage Boxes – Hinged and Strutted Hatches
- Full Swim Platform with Swim Step and Ladder (optional powder coating)
- Fixed Frame Soft Top with Back Drop
- Center Helm w/ 2 Doors and 3 Clear Bolt-on AR Polycarbonate Windshields
- Closed Bow – Diamond Plate
- Sliding Side Windows w/ Quarter Glass
- 36″ Tall Heavy Duty Powder Coated Rear Rails (bolt-on with 10 pole holders and 6 cup holders)
- Bolt-on Top Rails – Powder Coated
- Bolt-on Rear Top Grab Rail – Powder Coated
- Cross Storage Box in front of Fuel Tank, with Powder Coated Diamond Plate Lid
- 4 Weld-On Stern Eyes and 1 Weld-On Bow Eye
- 5 Weld-On Cleats
- Net Holder on Port Gunwale
- Transducer Bracket (starboard side)
- 3 Diamond Plate Gunwale Pads – Powder Coated
INTERIOR
- 3 National Mid Back Air Ride Seats (custom upholstery)
- 2 Rear Bench Seats (smooth aluminum, powder coated) with Back Rests and Storage
- 3 Windshield Wipers with Passenger Switches
- Flo-Tec Dual Lever Control
- 4 Vent Heater with Defroster
- Bilge Blower
- 2 Bilge Pumps 2000gph with Float Switch
- CO Sensor
- LED Navigation Lights, Dome Light and Anchor Light
- Horn
- Throttle Control Tower with Cupholder
- Center Stick Steering (right hand or left)
- Top Trays and Side Trays
- Diamond Plate Aluminum Floors – Powder Coated
- Bolt-on 2 Passenger Grab Rails w/ Cup Holder – Powder Coated
- Control Tower w/ Cup Holder – Powder Coated
- Carpeted Sides
- 2 Group 24 Batteries with Isolator Switch
- HCM Custom Engine Digital Display and Dash Panel
PAINT & GRAPHICS
- Standard HCM Decals
- 2 Stage Single Color Paint, from upper Corrugation to just below Gunwale, Window and Top Frame
Optional Equipment
POWERPLANT
- Kodiak 6.2L LSA
- Indmar Raptor 440
- Indmar Raptor 460
- Indmar Raptor 575
- Hamilton 213 Jet Pump with Driveline, and 3/4″ Billet Intake w/ Livorsi Control
- Hamilton 241 Jet Pump with Driveline, and 1-1/4″ Billet Intake w/ Livorsi Control
- Scott 912 Pump with Close Coupler or Driveline, and 3/4″ Billet Intake w/ Livorsi Control
- American Turbine 231 with Driveline, and 1-1/4″ Billet Intake w/ Livorsi Control
- Electric Over Hydraulic Reverse, with Livorsi Control if HJ212
- Yamaha 9.9 Trolling Motor
- O.B. Fuel and Electrical Connections
- TR1 Gold
- Sand Trap
- Stomp Grate
HULL
- 7′ Bottom with 108″ Beam
- 3/4 Hard Top
- Full Hard Top w/ Gullwing Door and 3 Sky Lights
- Alaskan Bulkhead w/ Sliding Door
- Bow Ladder (Powdercoated)
- Down Rigger Brackets
- Trolling Motor Bracket
- Tall Bow Rails
- Short Bow Rails
- Top Mount Rod Holder
- Extra Rod Holders
- Extra Cup Holders
- Removable Tow Bit
- Ski Tow
- Fish Box in Swim Platform
- Live Well Plumbing
- Anchor Locker in Bow
INTERIOR
- Bow Carpet (Snap In)
- Top Carpet (Snap In)
- Interior Carpet (Snap In)
- Front Window Covers
- Stern Cover
- Travel Cover
- Camper Top
- Cooler Cushions
- ORION Cooler
- Rear Rail Corner Seats
- Jump Seat
- Extra Air Ride Seats
- Removable Table
- Sleeper Seating
STEREO
- Sound Package A
- Bluetooth Stereo Integrated with Digital Dash
- (4) 8″ Mids in Top Trays (Marine)
- (1) 4 Channel Amp (Marine)
- Sound Package B
- Bluetooth Stereo Integrated with Digital Dash
- (4) 8″ Mids in Top Trays (Marine)
- (2) 6.5″ Mids on Sides of Dash (Marine)
- (1) 10″ Sub in Bow (Marine)
- (1) 5 Channel Amp (Marine)
- Sound Package C
- Bluetooth Stereo Integrated with Digital Dash
- (4) 8″ Mids in Top Trays (Marine)
- (2) 6.5″ Mids on Sides of Dash (Marine)
- (2) 6.5″ Mids in rear of Top Trays Sides of Dash (Marine)
- (2) 10″ Subs in Top Trays (Marine)
- (1) 8 Channel Amp (Marine)
- (1) 1200w Mono Amp (Marine)
- Sirius XM Upgrade for any Sound Package
PAINT & GRAPHICS
- Custom Vinyl Wrap
- Paint on Top and Flat Part of Sides to Lower Corrugation
- Full Side Paint
- Painted Bow
- Painted Gunwales
- Painted Trailer
- Powdercoated Trailer
- Trailer with Aftermarket Wheels
