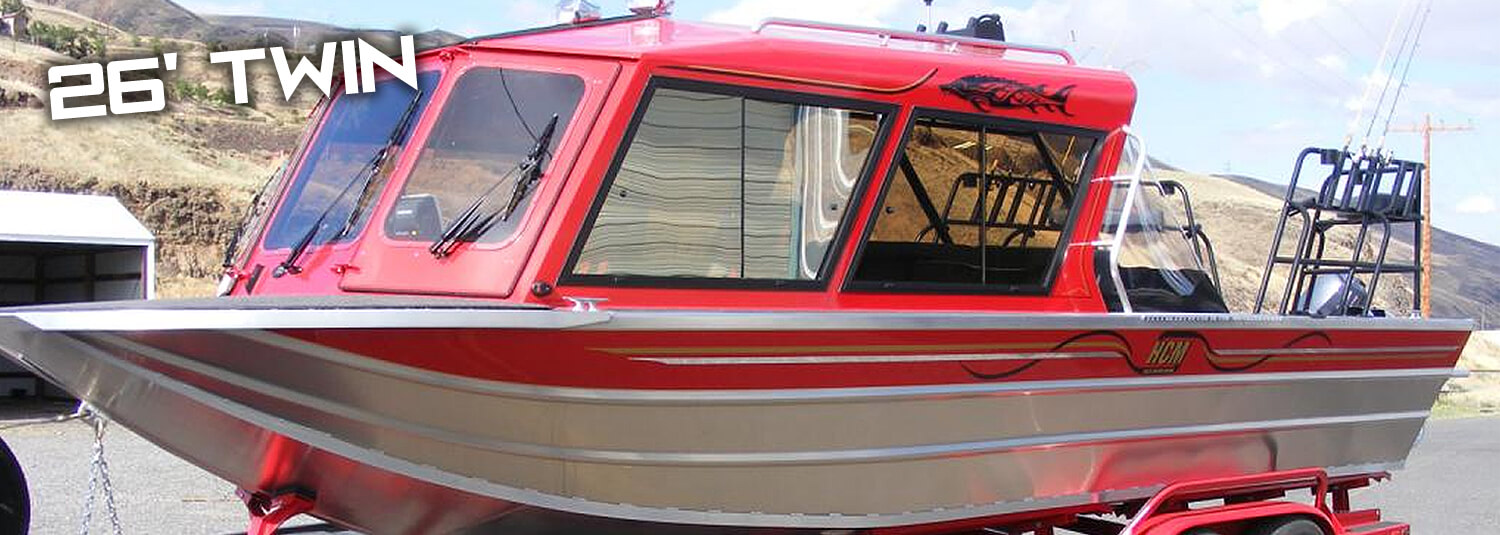

26′ TWIN

HCM Twin is the versatile boat for an entire family and their friends, or a small commercial guide. This boat tows well behind your average 3/4 ton pickup truck or large SUV. Hells Canyon Marine boats are designed for many uses! Including wake boarding, beach hopping, and running a shallow river with the biggest whitewater you can find! As many know, it can take a boat capable of accepting a challenge to make it to your favorite fishing spot. With the HCM Twin, you’ll have plenty of storage for everyone’s gear and camping can be made easy with our sleeper kit that allows the bench seats to make into a king size bed.

BUILD YOUR TWIN

Pricing will be sent with your custom build sheet after your form is submitted.

Specifications

Deadrise
Beam
Bottom
L.O.A.
Sides
Transom
Fuel Cap.
Bottom Support

11 degrees
114″
90″
26′
.160″
.190″
180 gal
9 hull stiffeners

Standard Equipment

POWERPLANT

Kodiak 6.2L DIC
Mufflers
Hamilton 212 Jet Pump with Close Coupler and 3/4″ Billet Intake
Sound Deadening Insulation added to Engine Compartment

HULL

Self Bailing Rear Deck with Removable Storage Boxes – Hinged and Strutted Hatches
Full Swim Platform with Swim Step and Ladder (optional powder coating)
Fixed Frame Soft Top with Back Drop
Center Helm w/ 2 Doors and 3 Clear Bolt-on AR Polycarbonate Windshields
Closed Bow – Diamond Plate
Sliding Side Windows w/ Quarter Glass
36″ Tall Heavy Duty Powder Coated Rear Rails (bolt-on with 10 pole holders and 6 cup holders)
Bolt-on Top Rails – Powder Coated
Bolt-on Rear Top Grab Rail – Powder Coated
Cross Storage Box in front of Fuel Tank, with Powder Coated Diamond Plate Lid
4 Weld-On Stern Eyes and 1 Weld-On Bow Eye
5 Weld-On Cleats
Net Holder on Port Gunwale
Transducer Bracket (starboard side)
3 Diamond Plate Gunwale Pads – Powder Coated

INTERIOR

3 National Mid Back Air Ride Seats (custom upholstery)
2 Rear Bench Seats (smooth aluminum, powder coated) with Back Rests and Storage
3 Windshield Wipers with Passenger Switches
Flo-Tec Dual Lever Control
4 Vent Heater with Defroster
Bilge Blower
2 Bilge Pumps 2000gph with Float Switch
CO Sensor
LED Navigation Lights, Dome Light and Anchor Light
Horn
Throttle Control Tower with Cupholder
Center Stick Steering (right hand or left)
Top Trays and Side Trays
Diamond Plate Aluminum Floors – Powder Coated
Bolt-on 2 Passenger Grab Rails w/ Cup Holder – Powder Coated
Control Tower w/ Cup Holder – Powder Coated
Carpeted Sides
2 Group 24 Batteries with Isolator Switch
HCM Custom Engine Digital Display and Dash Panel

PAINT & GRAPHICS

Standard HCM Decals
2 Stage Single Color Paint, from upper Corrugation to just below Gunwale, Window and Top Frame

Optional Equipment

POWERPLANT

Kodiak 6.2L LSA
Indmar Raptor 440
Indmar Raptor 460
Indmar Raptor 575
Hamilton 213 Jet Pump with Driveline, and 3/4″ Billet Intake w/ Livorsi Control
Hamilton 241 Jet Pump with Driveline, and 1-1/4″ Billet Intake w/ Livorsi Control
Scott 912 Pump with Close Coupler or Driveline, and 3/4″ Billet Intake w/ Livorsi Control
American Turbine 231 with Driveline, and 1-1/4″ Billet Intake w/ Livorsi Control
Electric Over Hydraulic Reverse, with Livorsi Control if HJ212
Yamaha 9.9 Trolling Motor
O.B. Fuel and Electrical Connections
TR1 Gold
Sand Trap
Stomp Grate

HULL

7′ Bottom with 108″ Beam
3/4 Hard Top
Full Hard Top w/ Gullwing Door and 3 Sky Lights
Alaskan Bulkhead w/ Sliding Door
Bow Ladder (Powdercoated)
Down Rigger Brackets
Trolling Motor Bracket
Tall Bow Rails
Short Bow Rails
Top Mount Rod Holder
Extra Rod Holders
Extra Cup Holders
Removable Tow Bit
Ski Tow
Fish Box in Swim Platform
Live Well Plumbing
Anchor Locker in Bow

INTERIOR

STEREO

Sound Package A
- Bluetooth Stereo Integrated with Digital Dash
- (4) 8″ Mids in Top Trays (Marine)
- (1) 4 Channel Amp (Marine)
Sound Package B
- Bluetooth Stereo Integrated with Digital Dash
- (4) 8″ Mids in Top Trays (Marine)
- (2) 6.5″ Mids on Sides of Dash (Marine)
- (1) 10″ Sub in Bow (Marine)
- (1) 5 Channel Amp (Marine)
Sound Package C
- Bluetooth Stereo Integrated with Digital Dash
- (4) 8″ Mids in Top Trays (Marine)
- (2) 6.5″ Mids on Sides of Dash (Marine)
- (2) 6.5″ Mids in rear of Top Trays Sides of Dash (Marine)
- (2) 10″ Subs in Top Trays (Marine)
- (1) 8 Channel Amp (Marine)
- (1) 1200w Mono Amp (Marine)
Sirius XM Upgrade for any Sound Package
